Main Feature

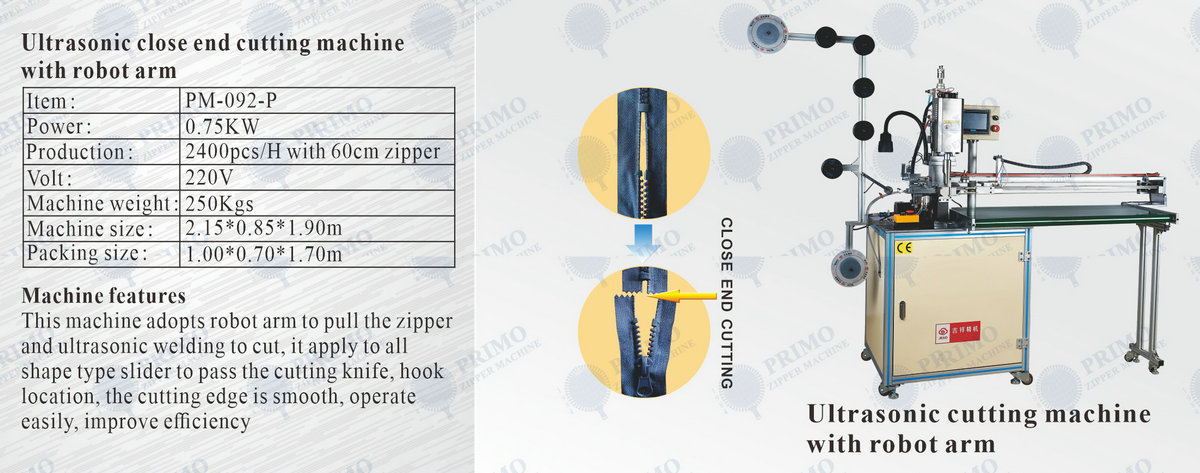

This machine adopts robot arm to pull the zipper when it cut, it apply to all shape type slider to passthe cutting knife, hook location, the cutting edge is smooth, operate easily,improve effciency
|

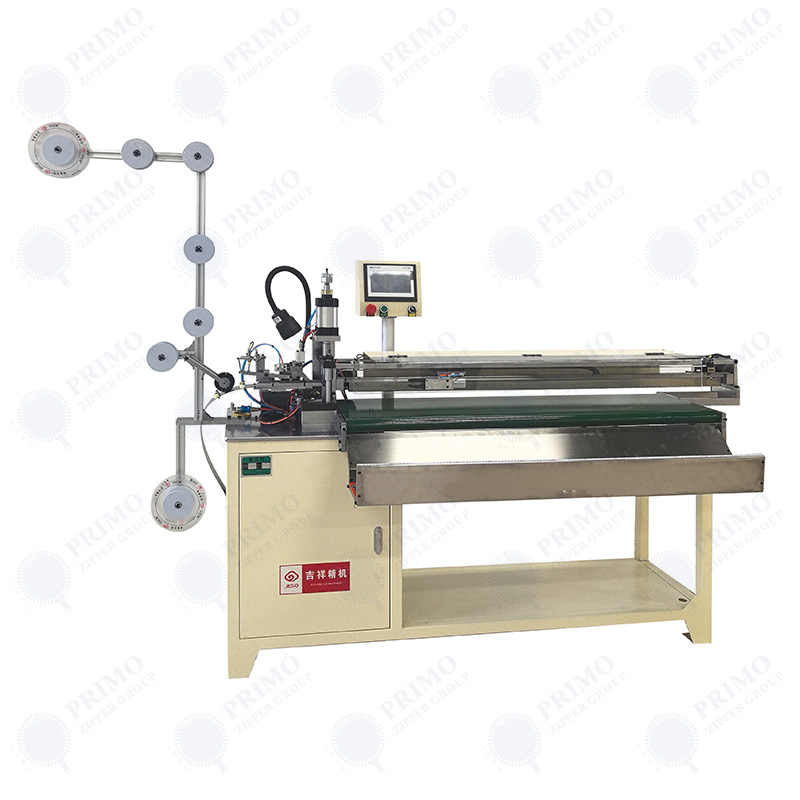

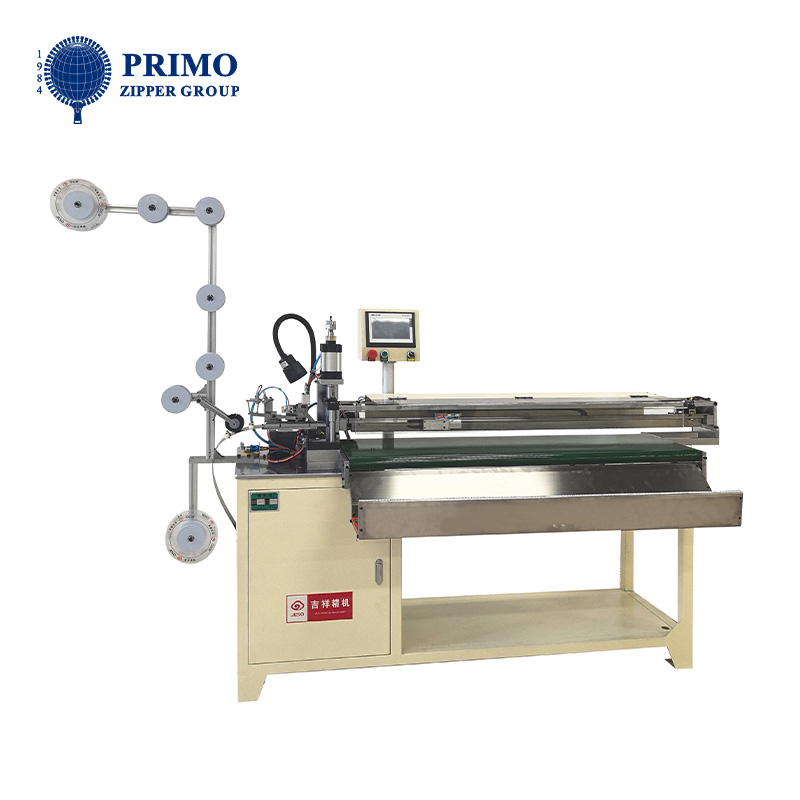

Auto Double Film Zipper Tape Sealing Machine
|
|
|
Model
|
PM-091
|
|
Power
|
0.75KW
|
|
Production
|
1600pcs/H with 60cm zipper
|
|
Volt
|
220V
|
|
Machine Weight
|
250Kgs
|
|
Machine Dimensioms(L×W×H)
|
2.15×0.85×1.90 m
|
|
Shipping Measurement(L×W×H)
|
1.00×0.70 ×1.70 m
|

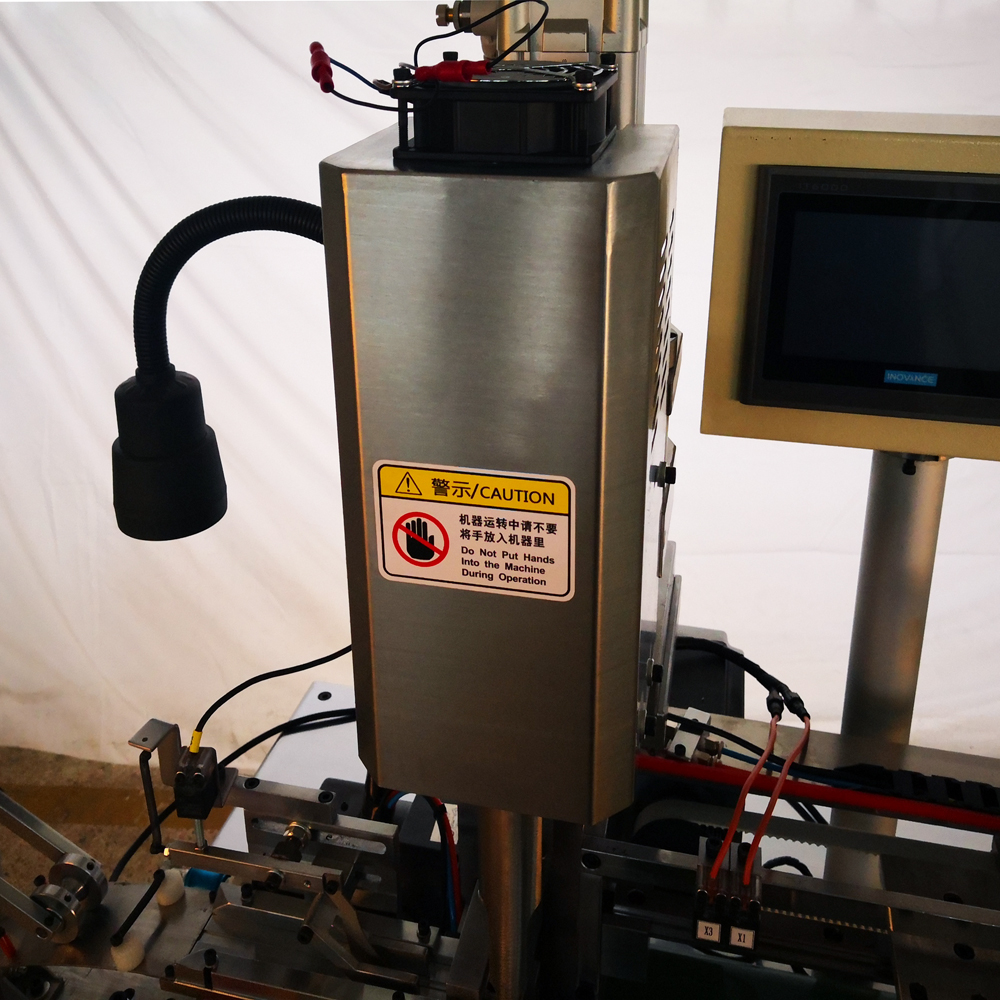

Ultrasonic Cutting Die System
This advanced cutting system utilizes high-frequency ultrasonic energy to create perfectly sealed zipper ends with superior edge integrity.
Cutting Process
Energy Conversion -20kHz transducer generates vibrations
Focused Cutting - Titanium horn amplifies and directs energy
Molecular Bonding - Heat-free localized fusion
Clean Release -Self-cleaning die design

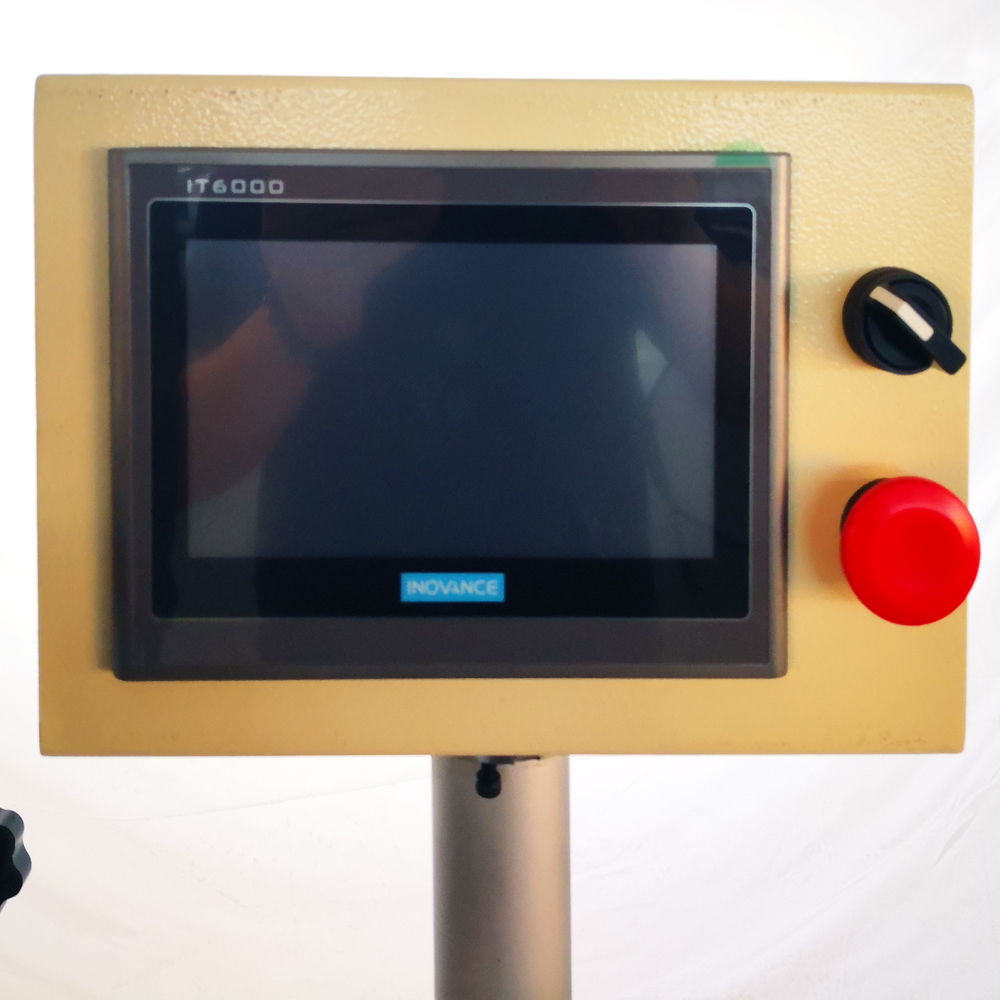

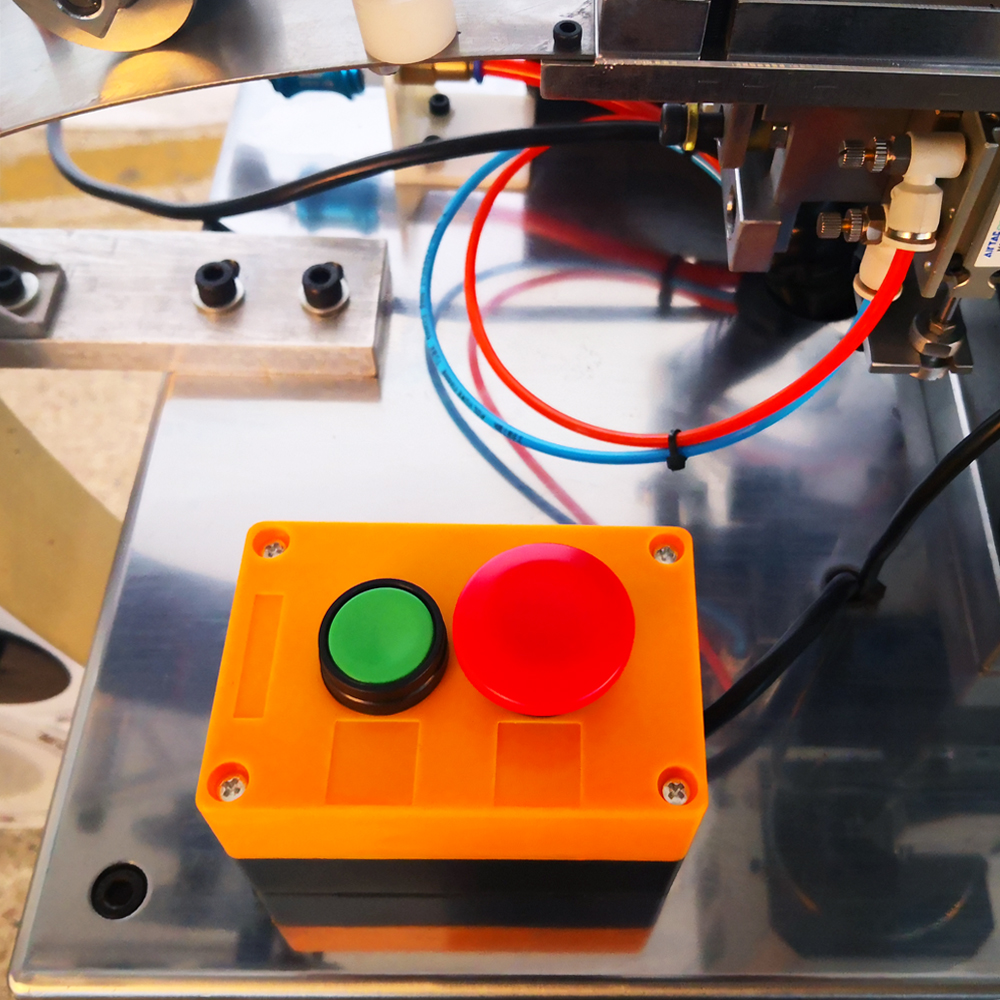

Emergency stop Safety switch System
This critical safety system provides instant machine shutdown capability through a highly visiblequick-access control interface.
Emergency Protocol:
lmmediate shutdown -Mushroom-head button triggers
Power lsolation - Main circuit breaker disengages
Lockout State -Requires manual reset
Restart Procedure -Positive-action restart control

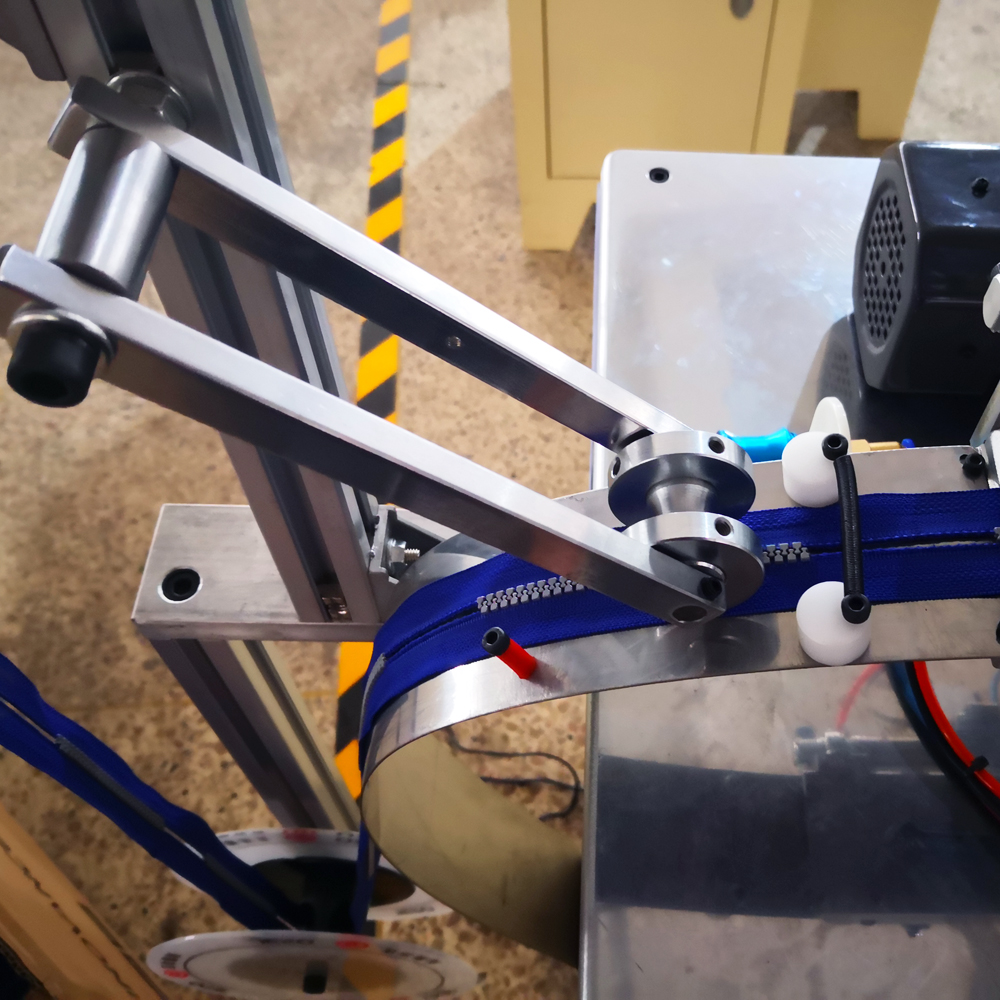

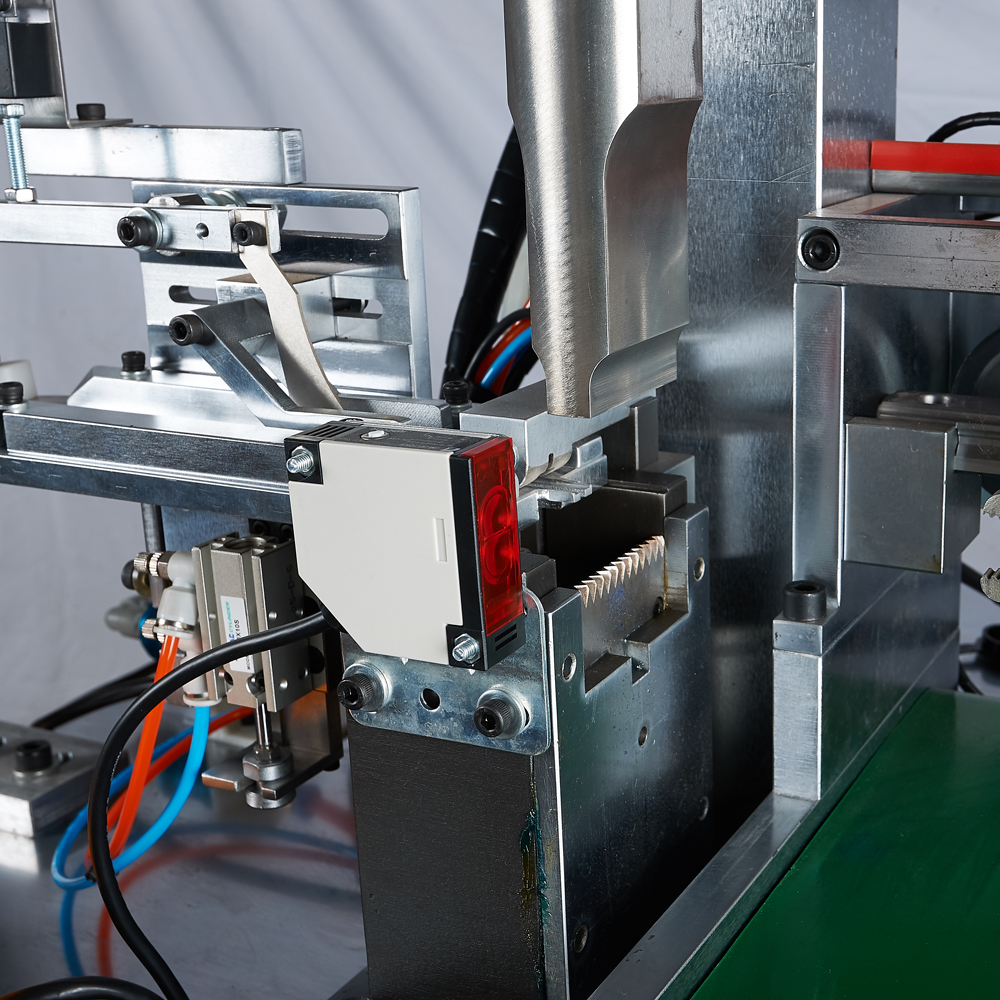

This pre-cutting alignment system ensures zipper tapes maintain perfect positioning beforeentering the cutting mold.
Positioning Process:
Entry Guide Rollers - Initial tape alignment
Precision channels - Constrained path guidance
Final Orientation -Mold-ready positioning

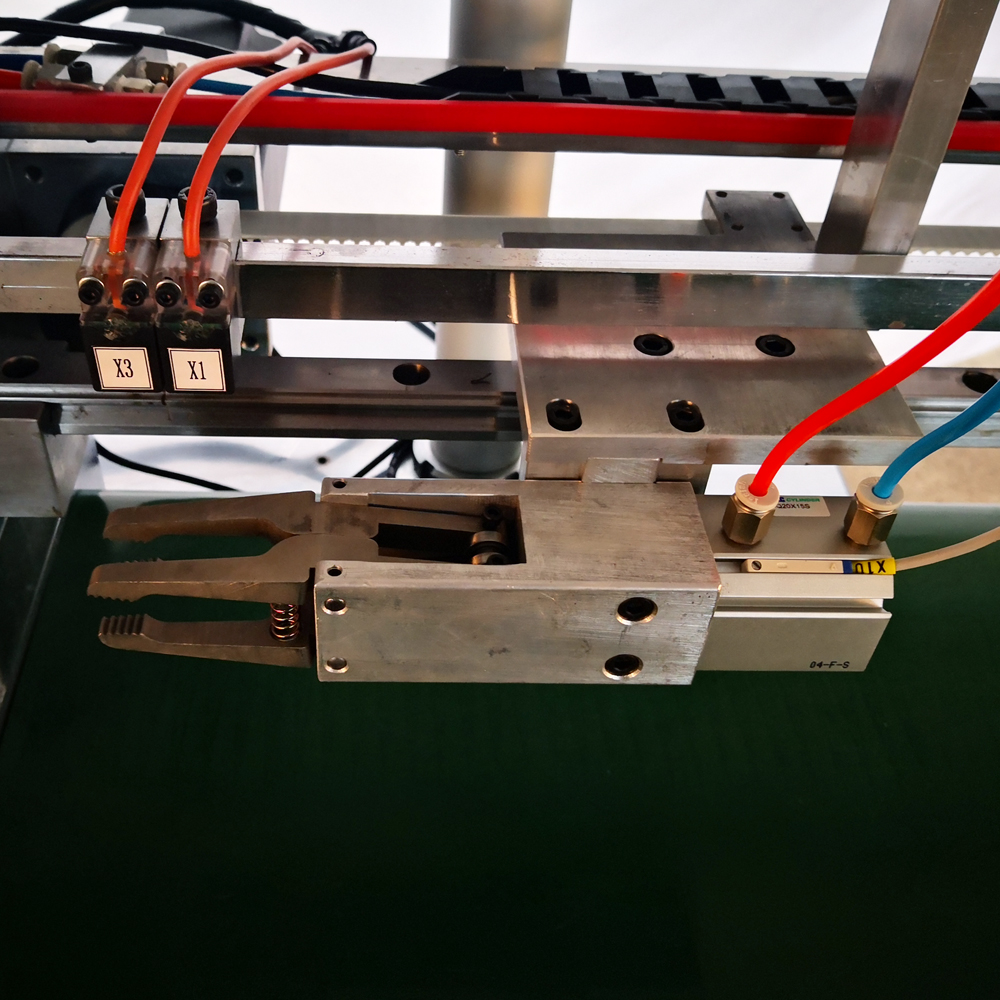

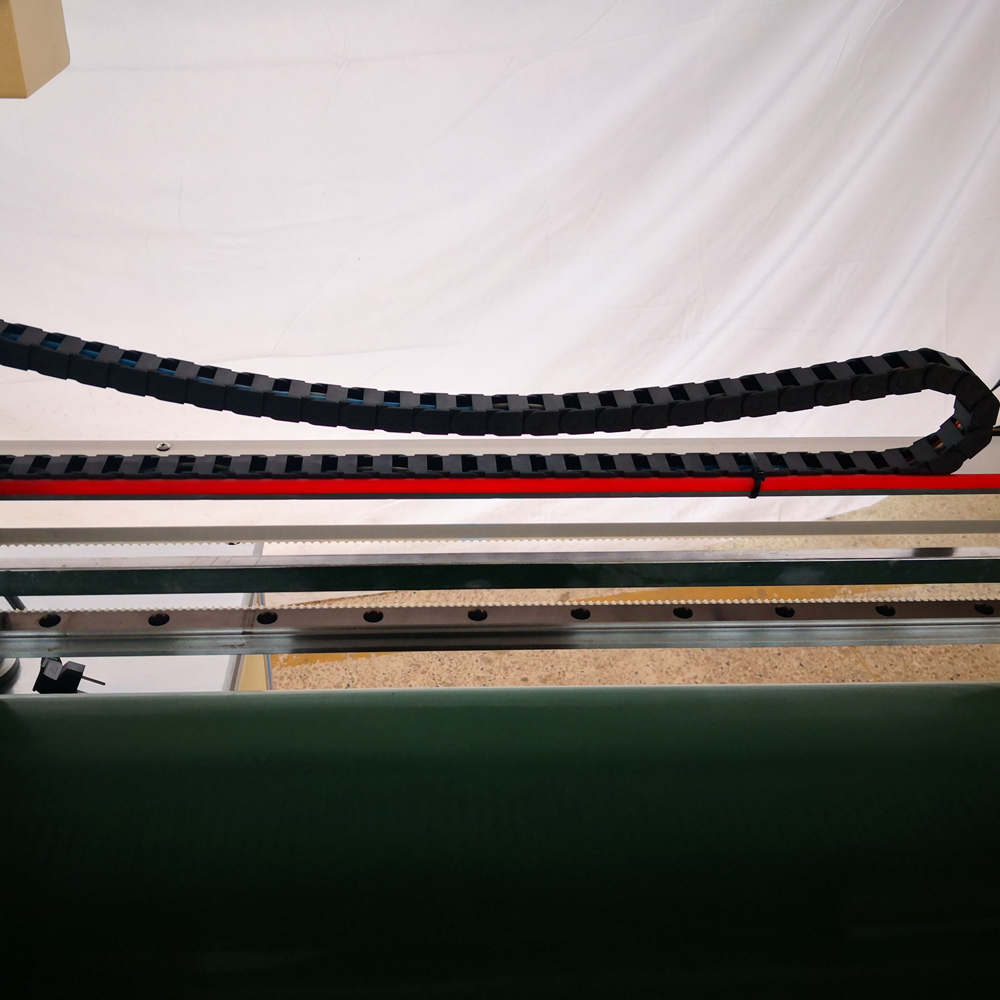

Robot Arm System for Zipper Handling
This versatile robotic system automatically extracts all zipper types from cutting dies, featuringuniversal compatibility with any slider shape.
Operation sequence
Adaptive Gripping -Shape-agnostic end effector engages slider
Precision Extraction -Controlled removal from die cavity
Oriented Placement - Consistent positioning for downstream processes
Efficiency
High-speed operation boosts productivity with minimal downtime.
Precision
Servo-controlled accuracy ensures perfect zipper placement every time.
User-Friendly
Intuitive controls and quick setup for effortless operation.
Durability
Industrial-grade construction for long-lasting performance.

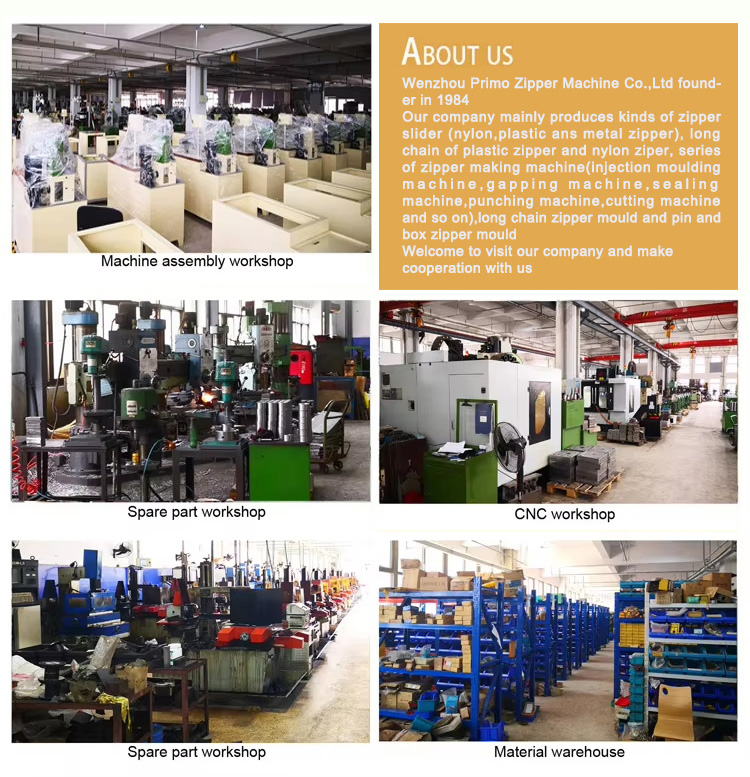

Wenzhou Primo Zipper Machine Co., Ltd(JESO) is a professional zipper making machine.
factory has been engaged in 1984. have 40 years of experience in zipper making machine,provides a combined service in the zipper production line.
If you have any enquiny about quotation or cooperation,please feel free to emal us at [email protected] or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products
