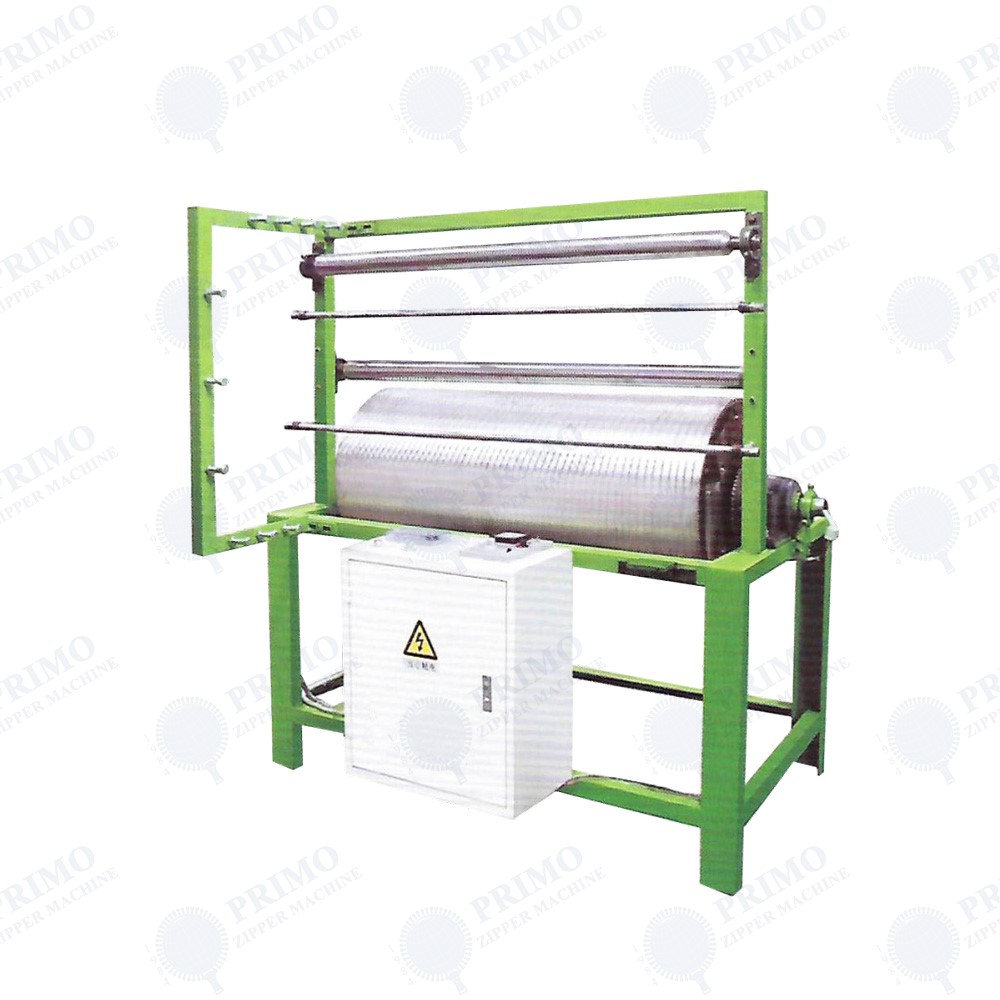

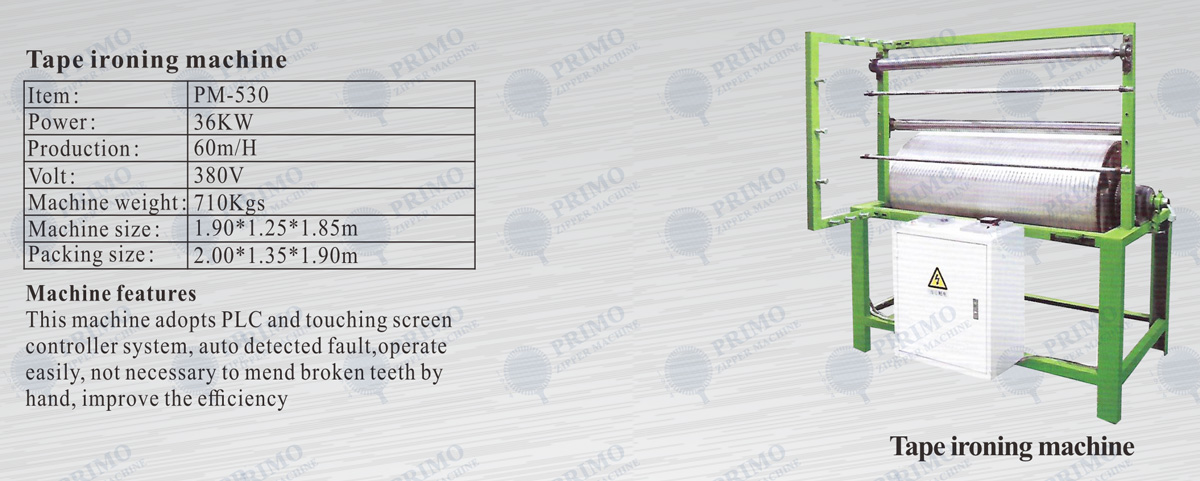

PRIMO PM-530 Automatic Tape and Zipper Ironing Machine
Summary : Have steam heating system model, and electronic heating system model.
Product Name: Automatic Tape and Zipper Ironing Machine (two lines)
Model number : PRIMO PM-530
Summary : Have steam heating system model, and electronic heating system model.
Advantages:
1-Model No.: PRIMO PM-530
2-Output: Tape400kg/10H, zipper850kg/10H
3-Power: 3kw
4-Voltage: 380V
5-Phase: 3PH
6-Frequency: 50HZ
7-Machine size: 3.5*2.4*2.5M
8-Packing size: 3.5*2.4*2.5M
9-NW: 2500KG
10-GW: 2500KG
1-Have steam heating system model, and electronic heating system model.
2-If customer make the normal qualtiy zipper tape and zipper, then this machine can iron both zipper and tape. The temperature is same for both zipper and tape.
3-If customer make high quality zipper, then there have some difference for ironing tape and zipper. A-If for ironing tape, the centre core will be a little eccentricity.but for zipper, there is no this problem and the zipper will be Very flat after ironing.B-As zipper has monofilament,it is more heavy, so the output is much more than ironing tape.
If you have any enquiny about quotation or cooperation,please feel free to emal us at [email protected] or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products
